High Selectivity and Zero Loss in the 10.9 GHz Band

This microwave cavity filter is a top-precision passive component, ideal for signal separation and interference elimination in high-frequency telecommunication systems.

With a center operating frequency of 10.9 GHz, it offers extremely narrow bandwidth and low insertion loss.

Main Features:

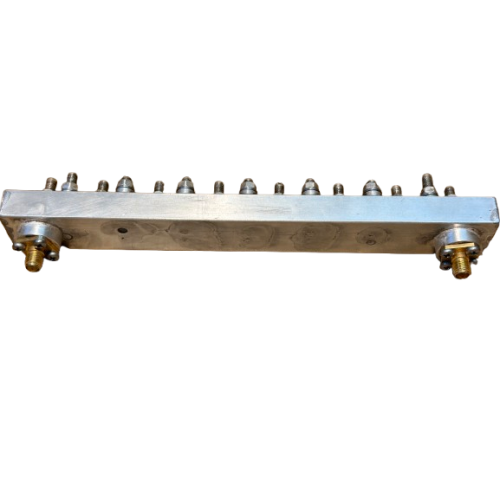

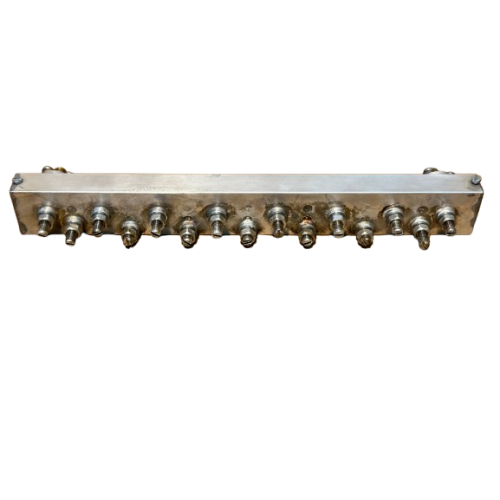

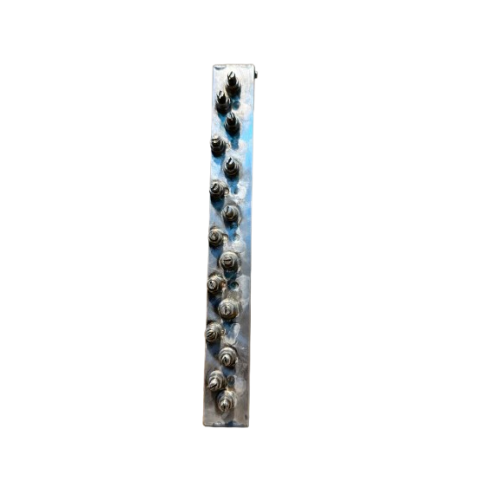

Multi-Cavity Design: It has 12 tuning stages (as shown by the adjustment screws), offering an extremely sharp roll-off slope for maximum signal purity.

High Quality Construction: Solid aluminum body with special treatment for stability in temperature changes.

SMA Connectors: Equipped with gold-plated SMA Female terminals for excellent adaptation and reliability at high frequencies.

Micro-Adjustability: External set screws allow precise tuning of the cavities for optimal performance in the desired spectrum.

Applications:

Microwave Point-to-Point links.

Radar receiving and transmitting systems.

Satellite communications (SATCOM).

Laboratory RF testing and microwave measurements.
