Without Mosfet (Pallet Only)
Recommended voltage supply: 48-50V DC
Operating Temperature range: 0 to +70 °C ( at Device Flange )
Storage Temperature range: -30 to +90 °C
Load Mismatch: 65:1 (all phase angle)
Technical specifications:
- Shipping Weight: 0.9Kg
- 88-108MHz 50V -- 22.5-29A
- Efficiency >80%
- Input/Output 50 ohms
- Pout: >1000W with 5W input
- 24 dB gain typ. ±1dB
- Class B push-pull
- Temperature compensated bias designed by NXP.
- Size (LxWxH): 130x62x30mm

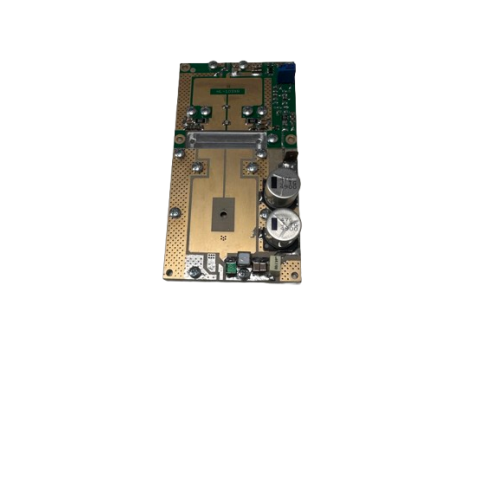

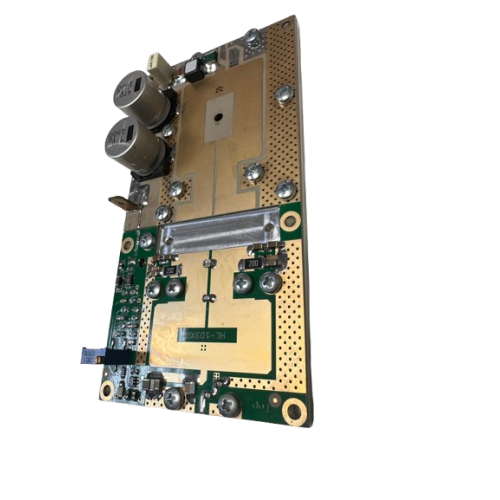

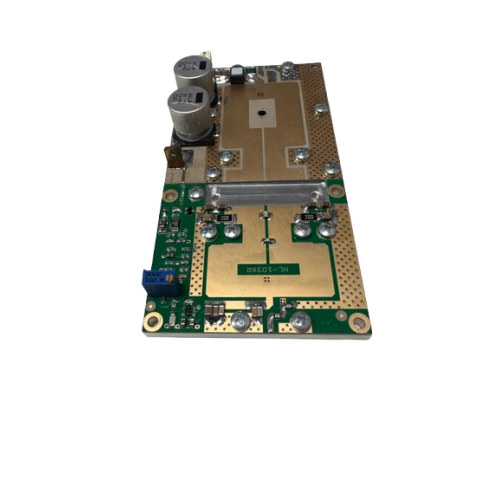

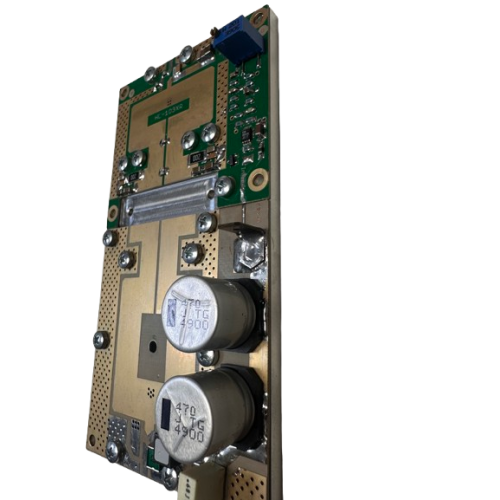

FM Pallet 1000W for BLF188XR 88-108MHz
- Product Code: a1001
- Availability: In Stock
- Condition: ✅ New
- ΕΚΠΤΩΣΗ -15%
- 130.00€
- 110.50€
-
⏱ Η ΠΡΟΣΦΟΡΑ ΛΗΓΕΙ ΣΕ:00ΜΕΡΕΣ:00ΩΡΕΣ:00ΛΕΠΤΑ:00ΔΕΥΤΕΡ.
- * All prices include VAT.
