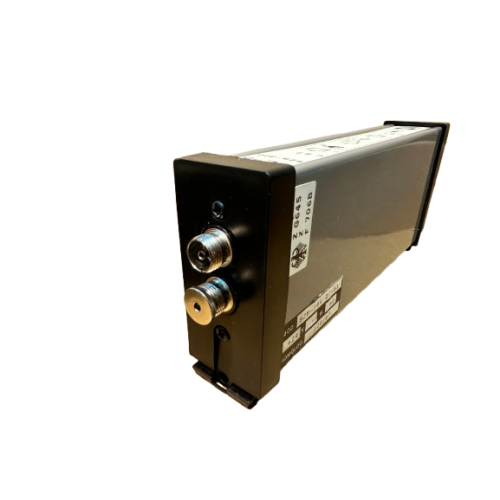

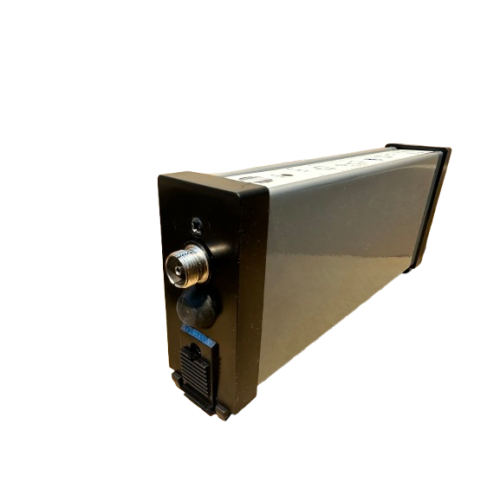

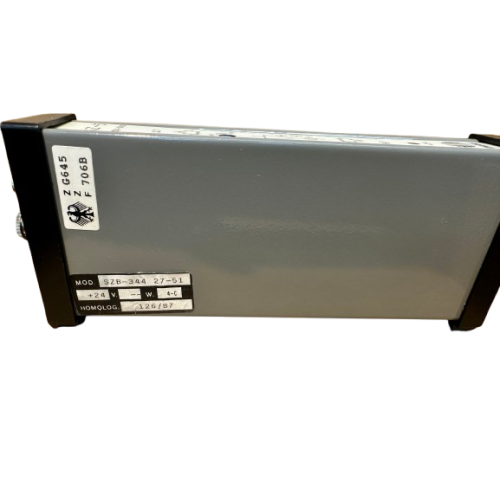

Ikusi SZ-5 is a high-precision active channel converter, designed for professional headends. This unit allows the reception of a UHF signal and its transfer to a new output frequency, facilitating spectrum management in complex distribution networks.

Functionality: In this configuration, the converter receives the signal from Channel 27 (C27) and converts it with absolute stability to Channel 51 (C51).

Main Features:

PLL Stability: Equipped with a Phase-Locked Loop circuit for zero frequency deviation and crystal-clear signal transfer.

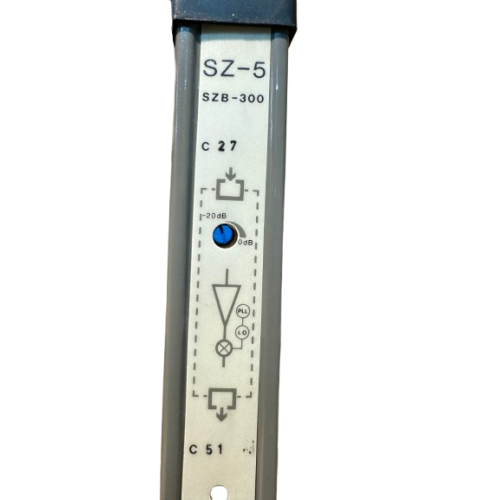

Adjustable Gain: It has a built-in attenuator on the front panel for adjusting the output level (0 to -20 dB), allowing for perfect channel balancing in the system.

High Selectivity: Designed to reject neighboring interference, ensuring the purity of the output signal.

SZB-300 Series: Compatible with Ikusi professional mounting brackets and power supplies for easy modular installation.

Technical Specifications:

Input: C 27 (UHF)

Output: C 51 (UHF)

Adjustment: Manual via potentiometer.

Connection: F-type connectors.

Ideal for

Hotel units, large residential complexes and networks where frequency redistribution is required to avoid interference or organize the channel list.
