Professional Satellite to RF Conversion

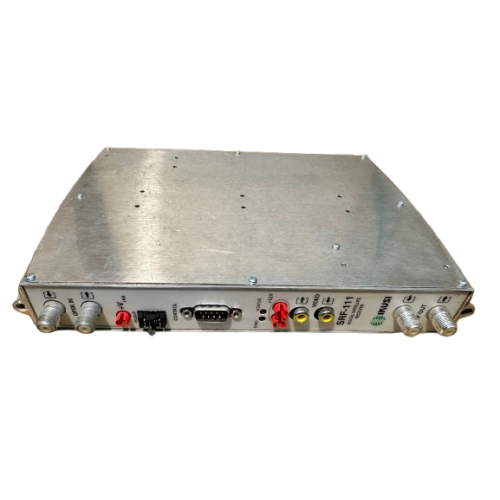

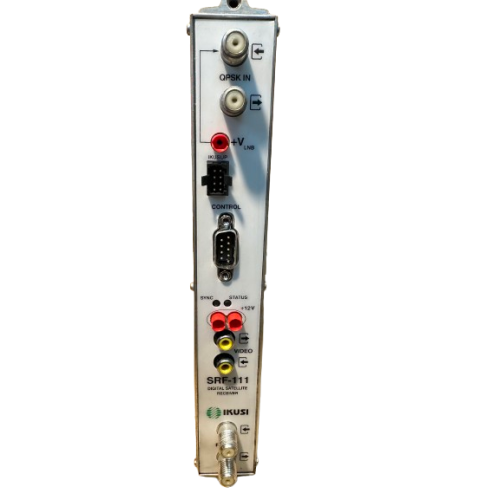

Ikusi SRF-111 is an advanced digital satellite receiver (FTA) of the top ClassA series. It is designed to receive digital satellite signals and convert them to analog RF channels (VHF/UHF) with VSB (Vestigial Side Band) modulation. VSB technology allows for the placement of adjacent channels without interference, making it ideal for large central TV systems in hotels and settlements.

Main Features:

VSB Technology: Ensures maximum spectrum savings and top image quality in dense channel networks.

Frequency Agility: Complete freedom of output channel selection across the entire VHF and UHF spectrum (45-862 MHz).

High Stability: Use of SAW (Surface Acoustic Wave) filters for excellent rejection of unwanted signals and crystal clear output.

Easy Programming: Easily configured via the SPI-300 programmer or via a computer.

Modular Design: Compatible with Ikusi ClassA series mounts and power supplies.

Technical Specifications:

Input: 950 - 2150 MHz (DVB-S / QPSK).

RF Output: Adjustable level up to 80 dBμV.

LNB Power Supply: Ability to control and power the LNB directly from the unit.

Standards: MPEG-2 support and compatibility with international television systems.
