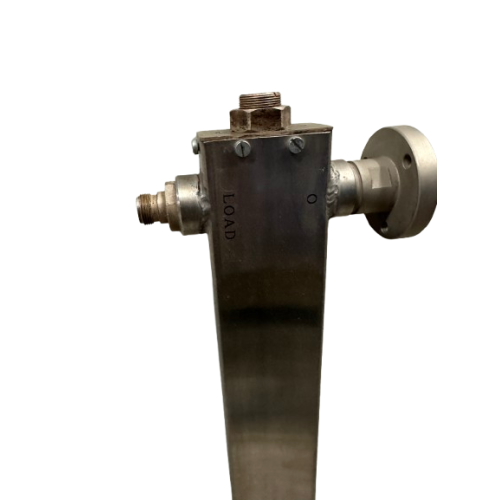

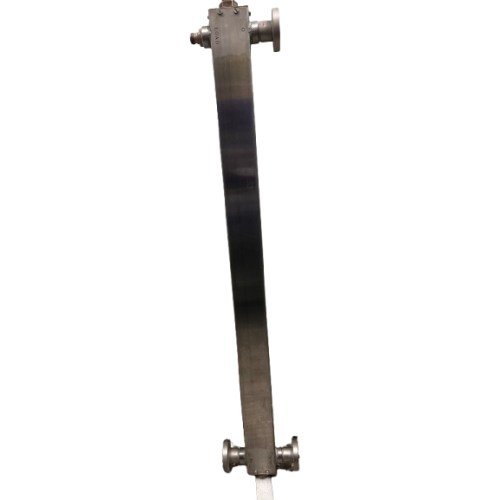

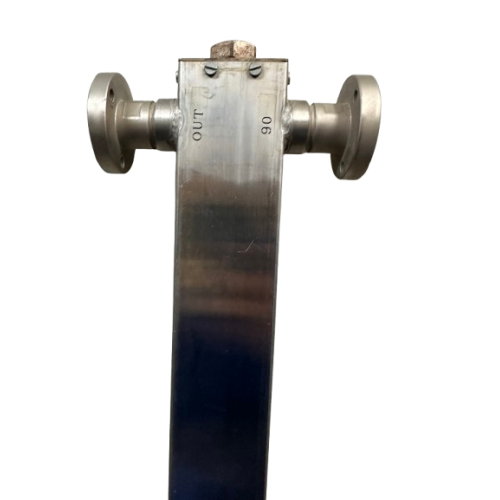

The FM Hybrid Splitter / Combiner -3dB 90° is a high-power RF hybrid coupler designed for professional FM broadcast applications. It supports up to 5 kW output power and combines or splits two 2.5 kW input signals with a precise 90-degree phase difference.
The -3dB quadrature design ensures equal power distribution, excellent port isolation, and reliable performance in high-power transmitter systems.
Technical Specifications
-
Type: 90° Hybrid Splitter / Combiner
-
Coupling: -3 dB
-
Phase Difference: 90°
-
Max Output Power: 5 kW
-
Input Power: 2.5 kW + 2.5 kW
-
Application: FM Broadcast
-
Function: Power Combining / Splitting
-
High port isolation
-
Low insertion loss
-
Continuous duty operation
FM Hybrid Splitter/Combiner 5KW
- Product Code: x1007
- Availability: In Stock
- Condition: 🔄 Used
- ΕΚΠΤΩΣΗ -15%
- 600.00€
- 510.00€
-
⏱ Η ΠΡΟΣΦΟΡΑ ΛΗΓΕΙ ΣΕ:00ΜΕΡΕΣ:00ΩΡΕΣ:00ΛΕΠΤΑ:00ΔΕΥΤΕΡ.
- * All prices include VAT.
