The LPF-150W is a high-performance low pass filter, essential for any FM radio station broadcasting in the 88-108 MHz band. Its primary function is to allow the broadcast signal to pass through while effectively suppressing harmonic interference (Harmonic Rejection) by more than 50dB, ensuring your transmitter complies with legal broadcasting standards.

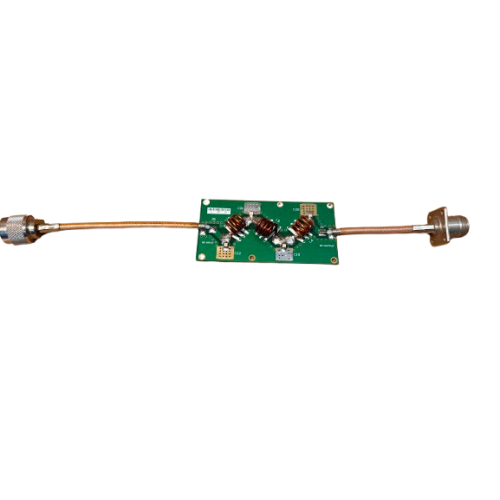

Designed for power levels up to 150W, it features a robust construction with N-Female input and N-Male output connectors, allowing for direct connection to the amplifier output or the antenna feedline. With extremely low insertion loss and high return loss, it guarantees maximum power transfer while preventing reflections that could damage your equipment.

Technical Specifications

Feature	Specification
Range Freq	88 – 108 MHz (FM Band)
Power Handling	150 Watts
Impedance	50 Ohms (In/Out)
Return Loss	> -20 dB
Insertion Loss	< 0.5 dB (τυπική)
Harmonic Rejection	> 50 dB
Input Connector	N-Type Female
Output Connector	N-Type Male

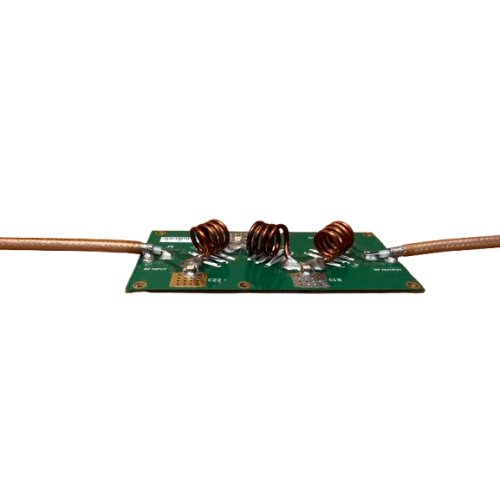

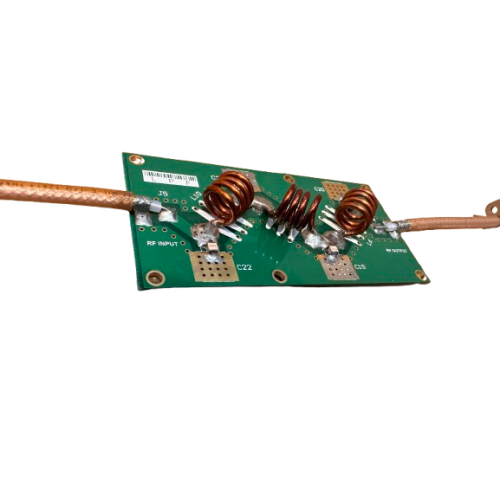

** The use of premium ATC capacitors ensures high Q-factor, exceptional thermal stability, and minimal power loss, making this filter ideal for continuous 24/7 broadcast operations.
